Home Products & Solutions Solutions Integrated Data Center Solution iSmart Series Micro Data Center

INVT's iSmart Micro Data Center highly integrates the UPS, supply and distribution system, monitoring system, and IT cooling system into a 19-inch enclosed server cabinet.And is equipped with a variety of environmental sensors, with remote web interface monitoring function, IT operator can realize remote operation and maintenance. All equipment is pre-installed and pre-tested in the factory, especially suitable for data centers infrastructure within 10-20㎡.
→ Click here to watch the product 3D animation←

FeaturesSpecificationsCertifications

Safe and reliable

• All components follow domestic and international standardized production standards to ensure product quality.

• Pre-installation, pre-commissioning and other process are controlled at various levels to ensure product installation and operation safe and reliable.

• A single cabinet is a complete system, suitable for various complex scenes(dust narrow space, no insulation measures, etc.).

• Integrated design, overall delivery, avoid system design problems.

• The door pop-up system can delay the aisle overheating and reserve time for data backup.

• The cabinet integrates an intelligent monitoring system to ensure the safe and reliable operation of the computer room.

High efficiency and energy saving

• The power distribution, UPS, monitoring, and refrigeration cabinets are integrated to save space.

• Engineering free design, free decoration and wiring, remote operation and maintenance are not on duty, saving TCO.

Easy installation and rapid deployment

• Modular design of power distribution, easy installation and maintenance.

• Rack-mounted air conditioner indoor unit, pipe thread connection.easy maintenance.

• The computer room does not need special decoration treatment and the equipment is ready to use. Installation and commissioning cycle only need 3 hours.

• A single cabinet is a complete system, plug and play.

Intelligent management

• The monitoring system is extensible and compatible with third-party monitoring systems; friendly HMI.

• Support local and remote WEB interface access, SMS alarm function.

iSmart  Series Integrated Cabinet Solution
   Enclosed Hot and Cold Aisle (low density)
SystemIT  rated power3kVA
Mains220Vac,50Hz/60Hz
Ambient temperature0-45℃
Ambient humidity10-95%  (Relative humidity)
IP ClassIP5X
Altitude1000m,  >1000m need to be dereated
CabinetDimension  (W*D*H)600*1200*2000mmDoes not include casters
Space occupation32U
Display10.1  inches touch screen
Atmosphere lampFront  RGB three-color light
Lighting methodFront  and rear LED
Cable entryTop  and bottom
Access control systemFingerprint  + IC&ID card +Password
Power Supply and Distribution SystemDistribution  moduleConfigurationMain  CB: 63A/2P, rack installation, with the indicator of operation
Lightning protectionClass  C lightning protection
   Standard for 2P, optional  for 1P+N
Height3U
UPSCapacity3kVA/6kVA
Power distribution Single  phase in and single phase out
BatteryBuilt-in  battery or external battery cabinet
PDUStandard  typeIEC  socket*2pcs, 16 ports (13*10A+3*16A)
Intelligent typeOptional  for 24 ports
Monitoring SystemPower  and environment monitoring systemIntelligent  integrated monitoring host
Single cabinet controlExpanded  control module
Eenvironment monitoringSmoke  sensor*1
Temperature&humidity sensor*1
Water leakage sensor*1
Webcamoptional
Infrared detectoroptional
Other deviceSMS  alarm optional
Emergency VentilationEmergency  modeEmergency  pop-up door system
Cooling SystemAir  conditionerRack  type (default constant temperature type)
Rated cooling capacity3.7kW
Rated power consumption1.2kW
Rated air volume700m³/h
Drop height-5m≤△H10m
MechanicalPackage  dimensions720*1338*2230mm
Weight188kg  (without AC, UPS, battery pack)
 Cabinet  color Black  (RAL9004)

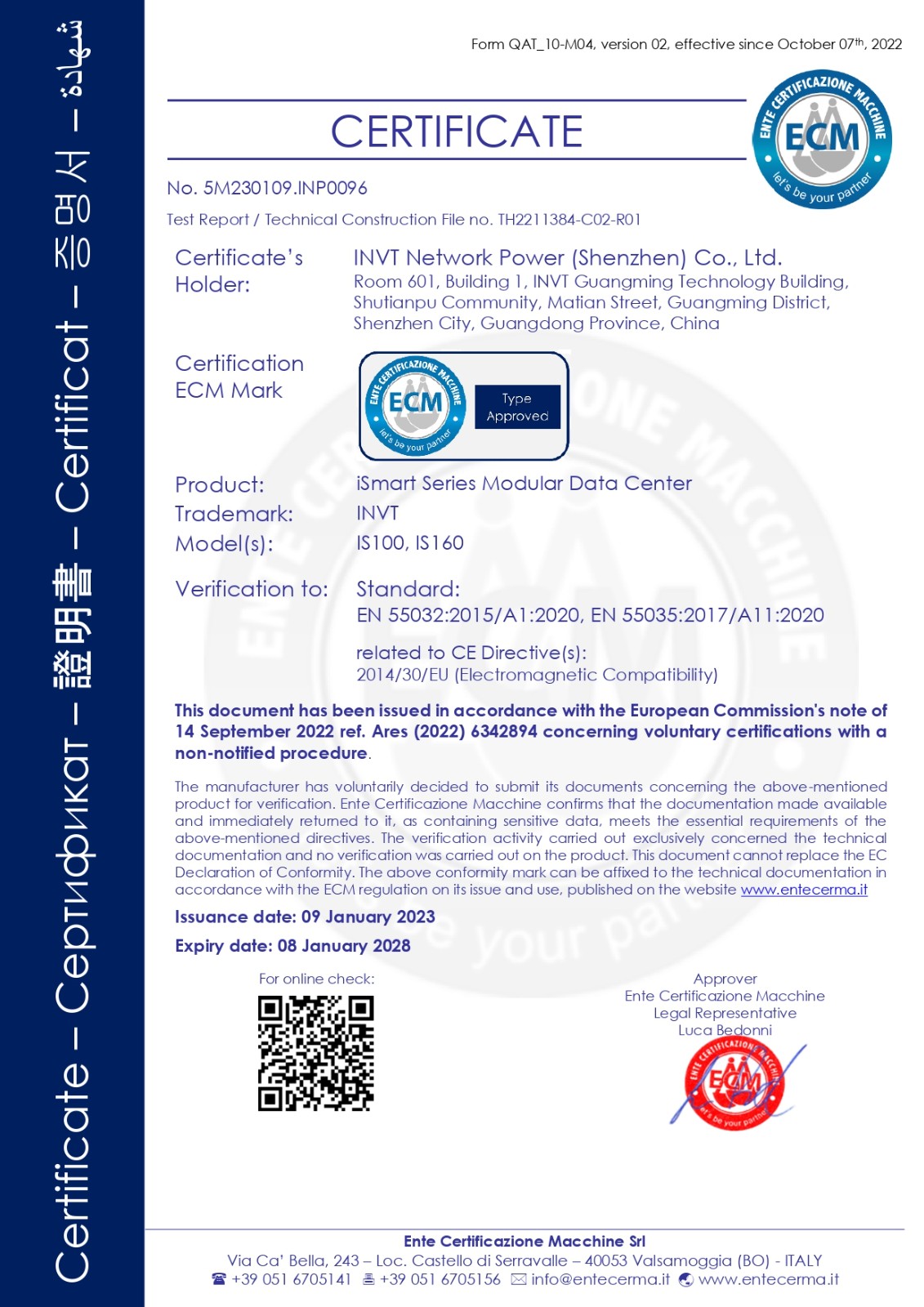

CE.png——CE Certification

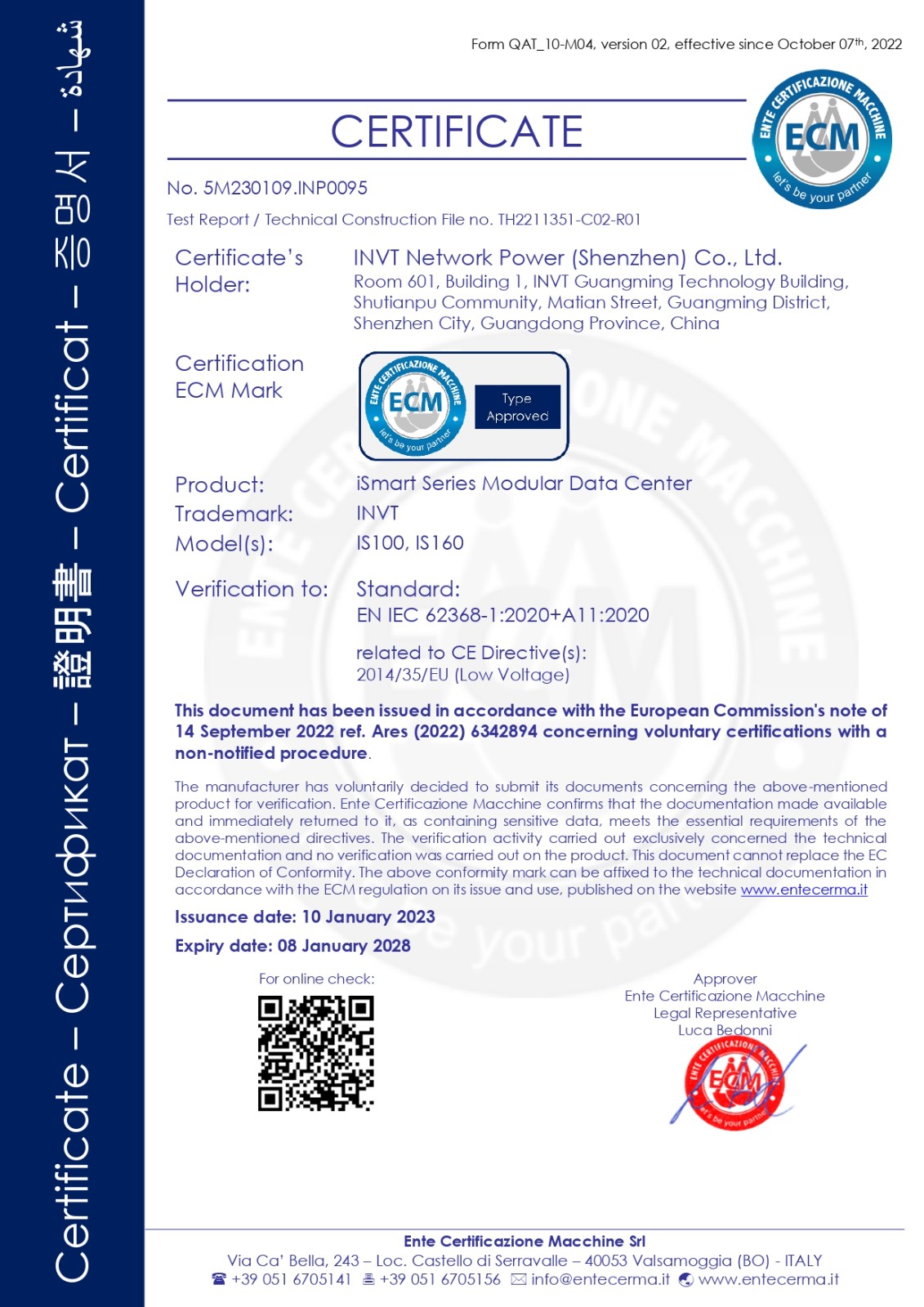

(iSmart)CE-EMC证书_page-0001.jpg     iSmart Series   (LVD)_page-0001.jpg
